Interactive Reference Architecture

Click on the components or numbered steps below to explore how this architecture works.

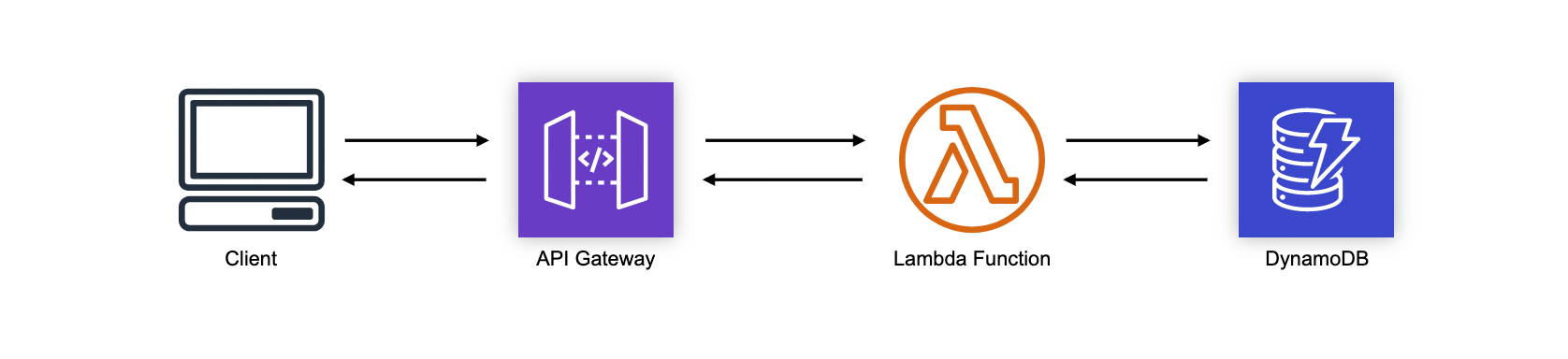

This is the most basic of patterns you’re likely to see with serverless applications. The Simple Web Service fronts a Lambda function with an API Gateway. I’ve shown DynamoDB as the database here because it scales nicely with the high concurrency capabilities of Lambda.

Deploy this Pattern

Below are the basic configurations for deploying this pattern using different frameworks and platforms. Additional configuration for your environment will be necessary. The source files and additional examples are available in the GitHub repo.

• SAM
• Stackery
• Serverless Framework
  service: simple-web-service provider: name: aws runtime: nodejs12.x stage: ${opt:stage,'dev'} region: us-east-1 stackName: ${self:service}-${self:provider.stage} stackTags: SERVICE: ${self:service} httpApi: payload: '2.0' cors: true functions: GetUser: handler: index.handler memorySize: 1024 timeout: 6 tracing: Active environment: TABLE_NAME: !Ref Users TABLE_ARN: !GetAtt Users.Arn iamRoleStatementsName: ${self:service}-${self:provider.stage}-getuser-role iamRoleStatements: - Effect: Allow Action: - dynamodb:getItem - dynamodb:putItem - dynamodb:updateItem - dynamodb:deleteItem Resource: - !Join [ '/', [ !GetAtt Users.Arn, '*' ] ] - !GetAtt Users.Arn - Effect: Allow Action: - xray:PutTraceSegments - xray:PutTelemetryRecords Resource: "*" events: - httpApi: path: /user/{id} method: get plugins: - serverless-iam-roles-per-function resources: Resources: Users: Type: AWS::DynamoDB::Table Properties: AttributeDefinitions: - AttributeName: id AttributeType: S BillingMode: PAY_PER_REQUEST KeySchema: - AttributeName: id KeyType: HASH StreamSpecification: StreamViewType: NEW_AND_OLD_IMAGES

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

  service: simple-web-service provider:   name: aws   runtime: nodejs12.x   stage: ${opt:stage,'dev'}   region: us-east-1   stackName: ${self:service}-${self:provider.stage}   stackTags:     SERVICE: ${self:service}   httpApi:     payload: '2.0'     cors: true   functions:   GetUser:     handler: index.handler     memorySize: 1024     timeout: 6     tracing: Active     environment:       TABLE_NAME: !Ref Users       TABLE_ARN: !GetAtt Users.Arn     iamRoleStatementsName: ${self:service}-${self:provider.stage}-getuser-role     iamRoleStatements:       - Effect: Allow         Action:           - dynamodb:getItem           - dynamodb:putItem           - dynamodb:updateItem           - dynamodb:deleteItem         Resource:           - !Join [ '/', [ !GetAtt Users.Arn, '*' ] ]           - !GetAtt Users.Arn       - Effect: Allow         Action:           - xray:PutTraceSegments           - xray:PutTelemetryRecords         Resource: "*"     events:       - httpApi:           path: /user/{id}           method: get   plugins:   - serverless-iam-roles-per-function   resources:   Resources:     Users:       Type: AWS::DynamoDB::Table       Properties:         AttributeDefinitions:           - AttributeName: id             AttributeType: S         BillingMode: PAY_PER_REQUEST         KeySchema:           - AttributeName: id             KeyType: HASH         StreamSpecification:           StreamViewType: NEW_AND_OLD_IMAGES

• Pulumi
  // Full example: https://github.com/jeremydaly/reference-architectures/tree/master/simple-web-service/pulumi import * as aws from "@pulumi/aws"; import * as awsx from "@pulumi/awsx"; // Provision a DynamoDB Table. const users = new aws.dynamodb.Table("users", { attributes: [{ name: "id", type: "S", }], hashKey: "id", billingMode: "PAY_PER_REQUEST", streamViewType: "NEW_AND_OLD_IMAGES", }); // Create an API Gateway with a single /user/{id} route that uses the Table. // This uses the default Lambda, IAM, and name settings; for full control over // them, see the aws.lambda.CallbackFunction class, which can be allocated // separately and passed instead of the inline eventHandler below. const api = new awsx.apigateway.API("api", { routes: [{ path: "/user/{id}", method: "GET", eventHandler: async (event, context) => { const tableName = users.name.get(); const tableArn = users.arn.get(); return { statusCode: 200, body: JSON.stringify(event) }; }, }] }); // Export the resulting API Gateway URL: export const url = api.url;

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

  // Full example: https://github.com/jeremydaly/reference-architectures/tree/master/simple-web-service/pulumi   import * as aws from "@pulumi/aws"; import * as awsx from "@pulumi/awsx";   // Provision a DynamoDB Table. const users = new aws.dynamodb.Table("users", {     attributes: [{         name: "id",         type: "S",     }],     hashKey: "id",     billingMode: "PAY_PER_REQUEST",     streamViewType: "NEW_AND_OLD_IMAGES", });   // Create an API Gateway with a single /user/{id} route that uses the Table. // This uses the default Lambda, IAM, and name settings; for full control over // them, see the aws.lambda.CallbackFunction class, which can be allocated // separately and passed instead of the inline eventHandler below. const api = new awsx.apigateway.API("api", {     routes: [{         path: "/user/{id}",         method: "GET",         eventHandler: async (event, context) => {             const tableName = users.name.get();             const tableArn = users.arn.get();             return { statusCode: 200, body: JSON.stringify(event) };         },     }] });   // Export the resulting API Gateway URL: export const url = api.url;

• CDK
  Are you a CDK Guru?
  Would you like to contribute patterns to the community?
  Check out the Github repo!

Want to Contribute?

All patterns and sample code are free to use and available under the MIT License. If you'd like to contribute to these patterns, please submit PRs to the GitHub repo.

» Explore more Serverless Reference Architectures and Patterns
